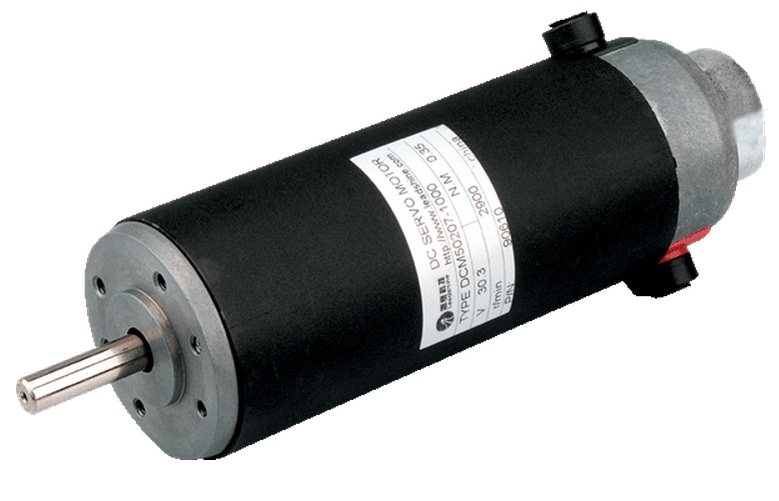

DCM57207 120W NEMA 23 Brushed DC Servo Motor

Click here for details

Name: DCM57207 120W NEMA 23 Brushed DC Servo Motor (Update: 20/04/2014)

Weight

:

1500 (gam)

Volume

:

720 (cm3)

Price

:

Number of	Price
1	156.52 USD

Residual

:

8

Views

:

2,385

Document

:

Product information:

Hidden content

Features

Reliable industrial quality
High performance, Low cost
Rated voltage:30.3 VDC, Rated power: 120W
NEMA23 frame size
2900 RPM rated speed / 3600 RPM peak
4000 CPR (1000-line) incremental encoder

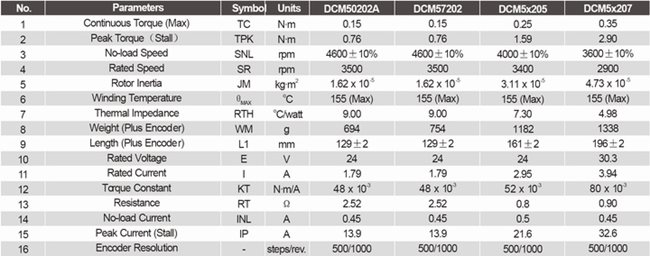

General

Wiring

Connection Table for Single-ended Encoder:

Pin	Colour	Connection (DCS303, DCS810/DCS810S)
1	Blue	Channel B (EB/EB+)
2	Yellow	Channel A (EA/EA+)
3	Red	VCC (E+5V/E+5V)
4	Black	Ground (EGND/EGND)
5	Green	Index/NC (NC/NC)

Connection Table for Differential Encoder:

Pin	Colour	Connection ( DCS810)
1	Black	Channel A+ (EA+)
2	Blue	Channel A- (EA-)
3	Yellow	Channel B+ (EB+)
4	Green	Channel B- (EB-)
5	Red	VCC (E+5V)
6	White	Ground (EGND)

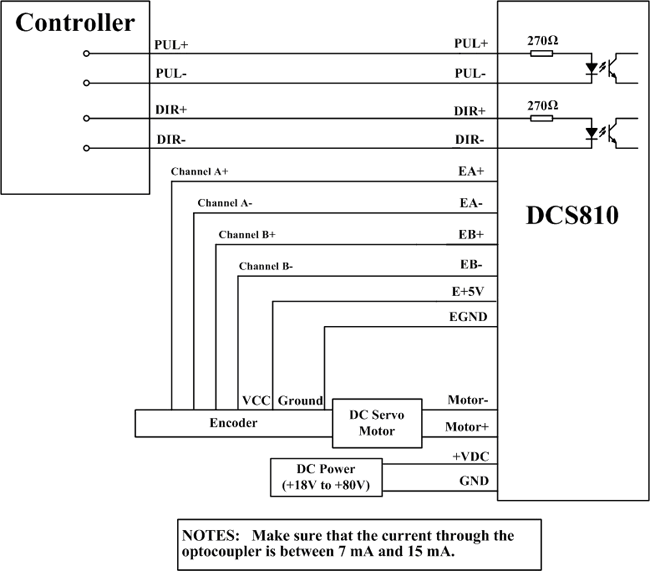

Typical connection

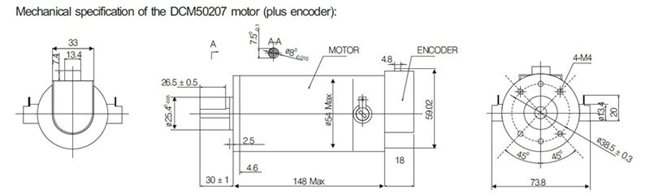

Mechanical
